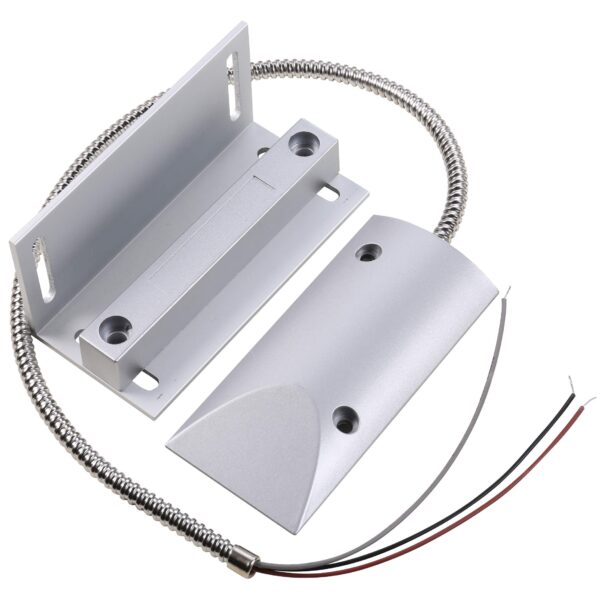

magnetic contact angle mc

In Stock

Technology Reed
Power High power
Maximum detection distance Up to 50mm depending on the material where it is installed
Material Metallic
Cable 2 wires protected by metal mesh
Magnet Neodymium
Resistance to mechanical shocks Up to 19KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 106 (W) x 10 (H) x 38 (D) mm
Magnet: 106 (W) x 16 (H) x 16 (D) mm
Compare

Description

  • Magnetic contact for shutters and metallic doors
  • Reed Technology
  • High power
  • Suitable for metal installation
  • L-Installation Bracket
  • Resistance to mechanical and electrical shocks
  • 2-wire system

Features

  • Magnetic contact
  • Suitable for metal installation
  • Reed Detection Technology
  • 2-wire connection system
  • Resistance to mechanical and electrical shocks
  • L-Installation Bracket
