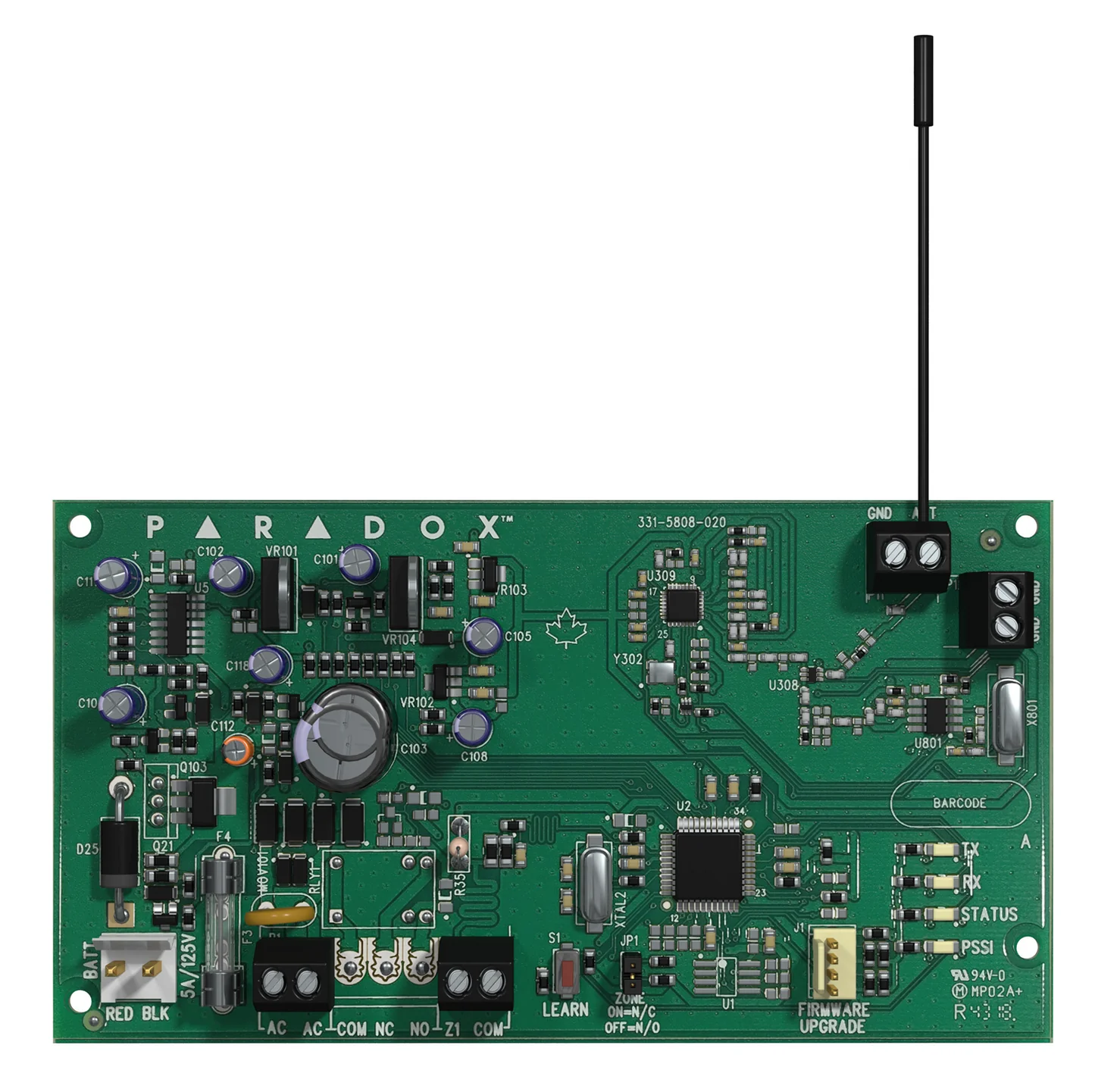

RPT1 WIRELESS REPEATER MODULE CODE: PA3804
In Stock
FEATURES:
- Built-in transceiver (433MHz or 868MHz)
- Allows to extend the range of wireless communications
- Supports all MAGELLAN transmitters
- Select which zone, PGM and/or keypad signals are repeated
- Signal strength display
- 1 programmable 5A relay output
- Universal transmitter input (N.O./N.C.)
- In-field firmware upgrade via 307USB and WinLoad
- Wireless range in a typical residential environment:
– 75m (240ft) with 433MHz;
– 50m (160ft) with 868MHz - Note: The RPT1 is not supported by the RTX3 when connected to an EVO panel.
- AC input (16Vac, 20VA)
- Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6c
Related products
-
PS17 DIGIPLEX POWER SUPPLY MODULE CODE: PA3462
- 1.7A switching power supply
- Fully supervised (AC, battery, low battery and auxiliary limit)
- Selectable battery charge current (350mA/850mA)
- 1 PGM output
- Includes 20cm x 25.5cm x 7.6cm metal box
-
SR130 WIRELESS OUTDOOR SIREN WITH BUILT-IN STROBE LIGHT CODE: PA3814
The SR130 is a weatherproof (IP54) and fully supervised wireless siren with a built-in strobe light. SR130 provides fast response to alarm signals with differentiation between intrusion and fire events.
-
PGM82 EXPANSION MODULE CODE: PA3803
FEATURES:
- Expansion of 8 programmable outputs
- PGM control via Insite GOLD application
- PGM control with manual on-box switches
- Can follow system events
- Display for each PGM, Data and Power
- Box cover lock mechanism
- Supports SP, MG, EVO and Swan
- Connects to control panel via 4-wire on keypad bus
- Firmware upgradeable
-
ZX8 8 ZONE EXPANSION MODULE CODE: PA3558
FEATURES:
- Compatible with MG Series, SP Series and Digiplex EVO
- Add 8 zones
- Selectable input resistors for EOL and Tamper
- 1 PGM output
- Use zone input as an anti-tamper switch input
- Support selectable EOL with V6.0
